Large Diameter Optical Fiber Cleaver
CT114/115/116
When exceptional cleave quality is required for fibers up to 1,250 μm, the new large diameter CT114/CT115/CT116 cleaver series provides a variety of options depending on your needs. The color LCD shows Cleaving progress and recommended insert size depending on fiber coating and cladding diameter. Saving and storing cleaving programs to a PC or tablet is accomplished using a USB port. The LDF cleaver’s extensive programming features allow for optimal results.
Product Variation
| Model | CT114 | CT115 | CT116 |
| Appearance |  | |  |
| Cladding diameter | 80 to 660μm | 80 to 1250μm | |
| Cleave length | 5 to 40mm | ||
| Angle cleaving | ― | ✔ | |
| Fiber holder | Fiber holder adapter FH-100, FH110 | ||

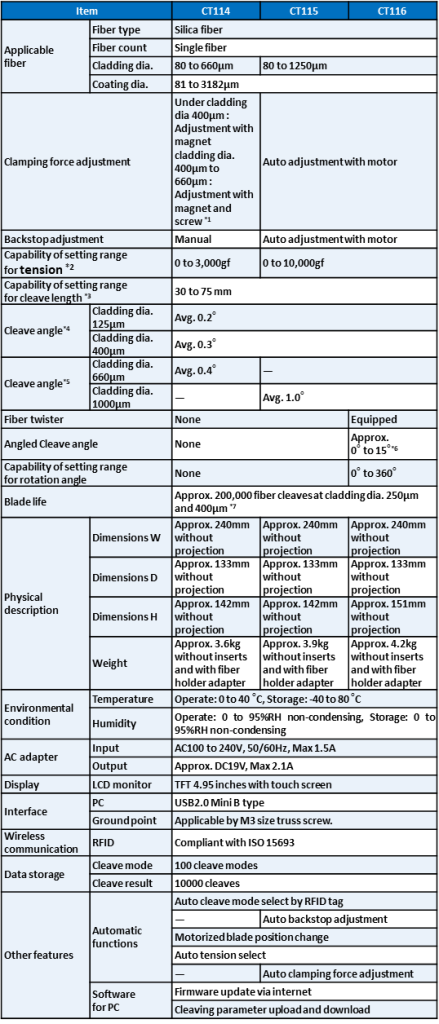

Features
Auto Backstop （for CT115/CT116）
The Backstop helps to provides better cleave quality especially for large-diameter fibers and for sub-critical tension fibers.
Micron order positioning is necessary to obtain stable cleaving. The previous model positioned the micrometer by hand, usually with the aid of a microscope.
The CT115 and CT116 are equipped with the auto backstop function. It detects the backstop position and moves to the correct position automatically.
It provides both stable cleaving and shortenes the cleaving operation time.
Blade Management
The automatic cleaving blade position always keep using good quality blade and it provides stable cleaving quality.
Since you do not need to worry about blade condition anymore.
The automatic cleaving blade position always keep using good quality blade and it provides stable cleaving quality.
Since you do not need to worry about blade condition anymore.
It’s time to rotate blade
Blade Management menu
Change blade position automatically
Cleaving blade
Next blade position
Wireless communication function
CT115 series is equipped with an RFID wireless communication function to newly designed FH110 series fiber holders.
The FH110 RFID includes the holder size information. The CT115 series reads it and selects a pre-assigned program.
It prevents selecting the wrong cleaving program.

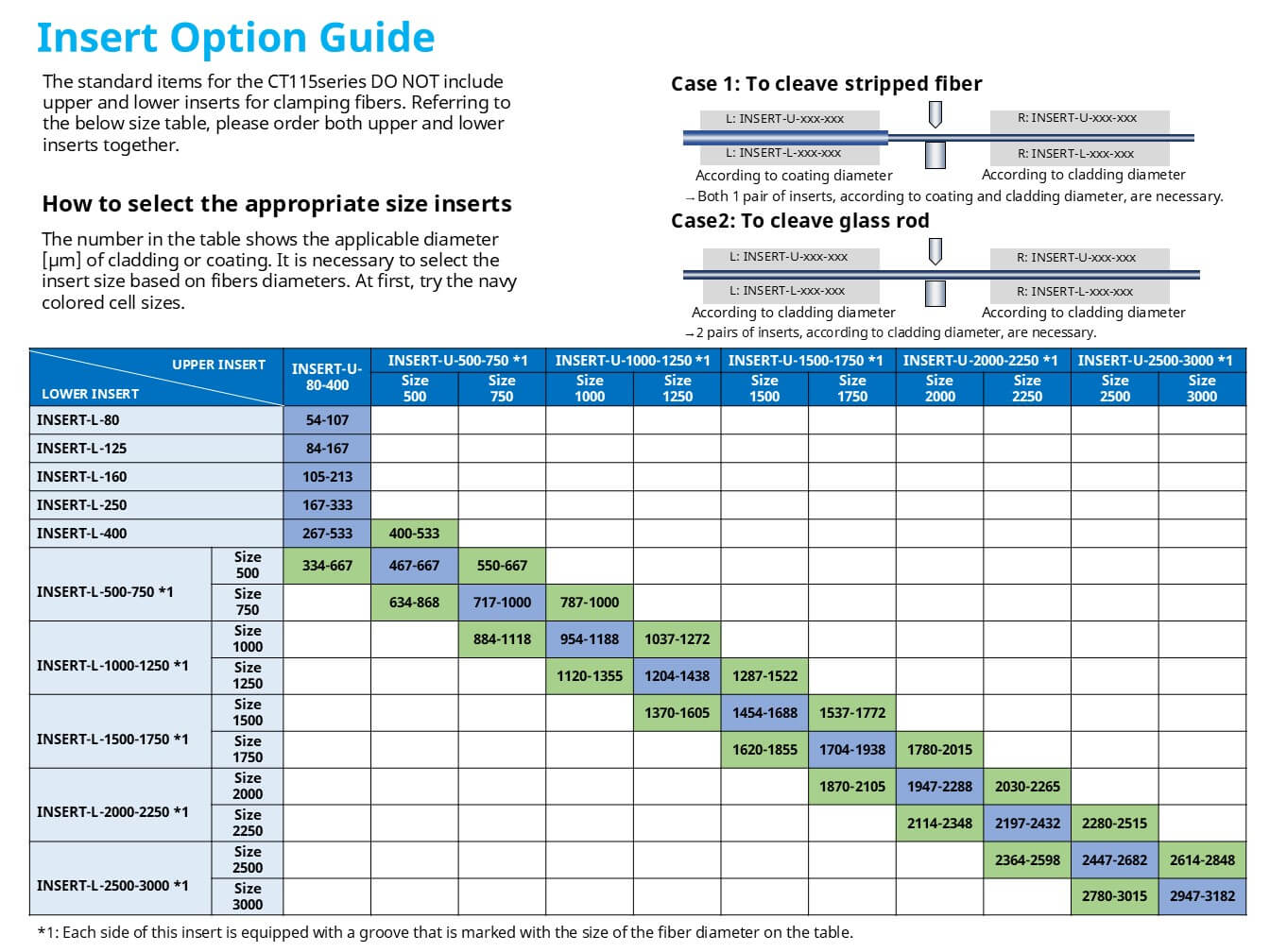

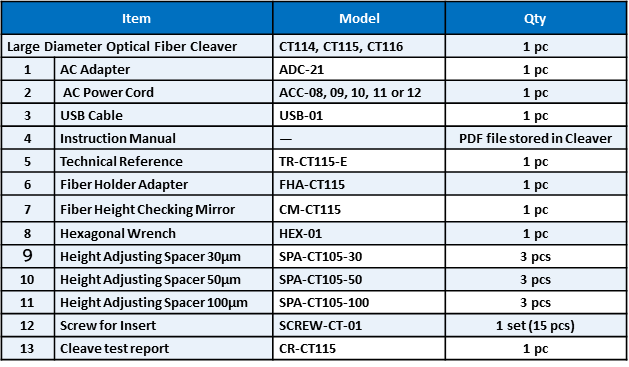

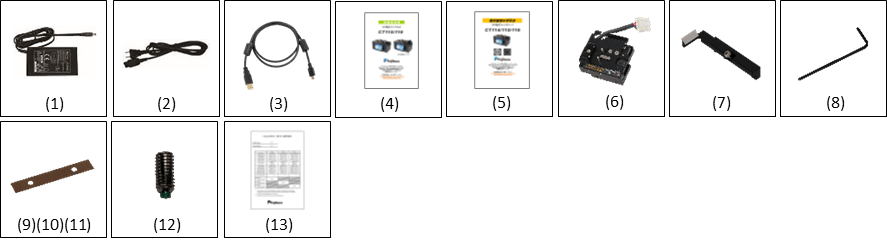

Insert Option Guide

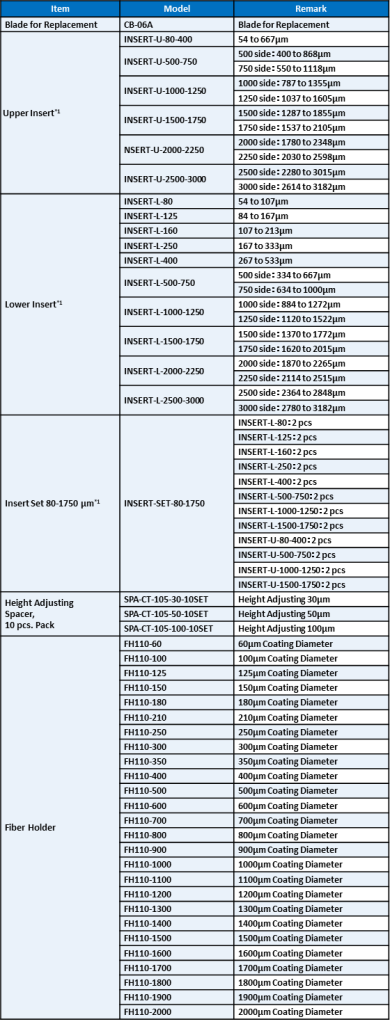

Inserts are selected according to fiber coating diameter and cladding diameter.
Therefore, the standard configuration does not include inserts. Please refer to the below table and purchase inserts separately.
*1: Each side of this insert is equipped with a groove that is marked with the size of the fiber diameter on the table.

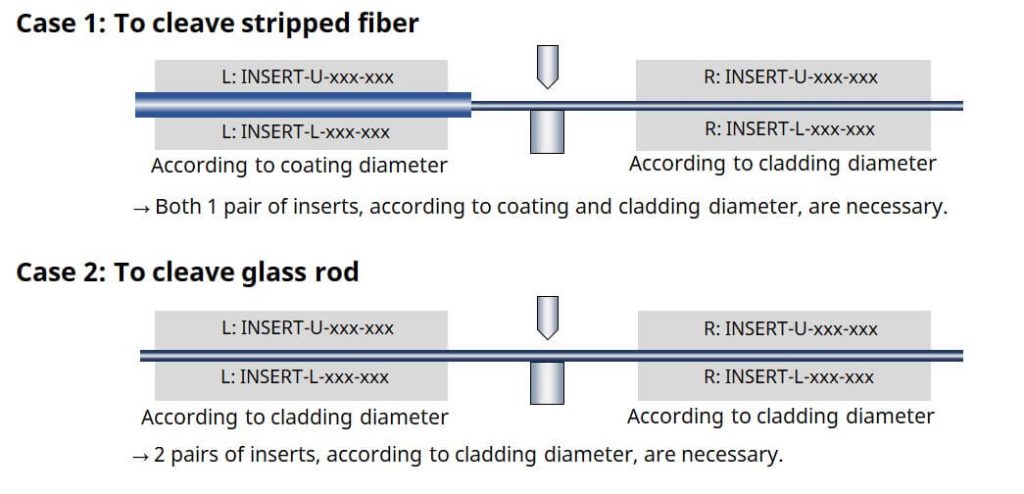

Case 1: To cleave stripped fiber
According to coating diameter
According to cladding diameter
→Both 1 pair of inserts, according to coating and cladding diameter, are necessary.
Case2: To cleave glass rod
According to cladding diamete
According to cladding diameter
→2 pairs of inserts, according to cladding diameter, are necessary.
Right QR shows the detail how to select insert.
QR shows the detail how to select insert.
